Atlas Electric stocks a large inventory of new, surplus and reconditioned low and medium voltage switchgear. In addition we are distributors and original equipment manufacturers utilizing switchgear components from many of the world’s most popular brands. Our OEM switchgear is designed and manufactured to provide years of safe, trouble free service and meet or exceed all applicable ANSI, IEEE and NEMA standards. We can provide custom engineered solutions at competitive prices with shorter deliveries than the large manufacturers.

Switchgear - Recent projects gallery

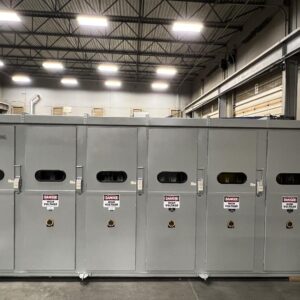

Siemens type GM-SG Indoor Metal-Clad 5KV Switchgear

Siemens type GM-SG Indoor Metal-Clad 5KV Switchgear and Series 81000 Medium Voltage Motor Control Center with the following major components: 2000 amp GMSG main-tie-main vacuum circuit breakers with Schweitzer  SEL-751A and GE Multilin 850 Feeder Protection Relays, two each 720 amp  4000HP FVNR vacuum starters with  GE Multilin 350 Feeder Protection Relays, nine each 400 amp FVNR vacuum starters with Schweitzer 869 Feeder Protection Relays, six each 400 amp FVNR vacuum starters with GE Multilin 350 Feeder Protection Relays. The switchgear and MCC also included the integration of an Arc Flash Detection System.


SHIPYARD PORTABLE POWER DITRIBUTION SYSTEM

Quantity of 4 Portable Power Distribution Skids with the following major components:

  • Heavy Duty Skid with forklift pockets designed for lifting and towing in either direction
  • Incoming Camlock Cable Connectors
  • 6 each Eaton KD3400 Circuit Breakers wired to outgoing Camlock Cable Connectors

15 KV 1200 Amp ABB Safegear Metal Clad Switchgear

NEW SURPLUS 15 KV 1200 Amp ABB Safegear Metal Clad Switchgear 2-high section with PT drawer, 1200 amp Advac Circuit Breaker, Multilin F35 Feeder Protection Relay Package, 6 each 800:5 CT’s (3-line and 3-load side) and wiring provisions for connection of customer supplied synchronising relay. Atlas Electric provided two identical units.

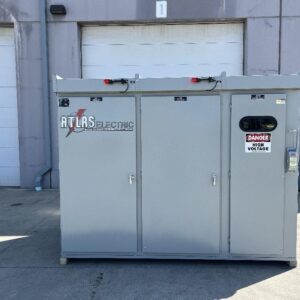

Atlas Electric 15 KV Outdoor Skid Mounted Automatic Transfer Switch

Atlas Electric Custom Manufactured 15 KV Outdoor Skid Mounted Automatic Transfer Switch with the following major components and features:

  • Heavy Duty Portable Skid designed for lifting and towing
  • 3 each 5/15 KV Becker SMC 600 amp Electrically Operated Vacuum Circuit Breakers with Multilin 350 Feeder Protection Relays
  • 2ea Neutral Grounding Resistors, 15kV L-L 7200v L-N, 5amp 5 minute rating
  • GE Multilin PQMII Power Quality Meter
  • Programmable Logic Controller
  • 2 each 2 KVA Control Power Transformers 13800-120/240 volt
  • 3 each 15 KV Potential Transformers
  • 1 each Startco SE-135 GF/GC relay
  • CSA inspected and labeled

SHIPYARD PORTABLE POWER DISTRIBUTION SYSTEM

Quantity of 4 Portable Power Distribution Skids with the following major components:

  • Heavy Duty Skid with forklift pockets designed for lifting and towing in either direction
  • Incoming Camlock Cable Connectors
  • 4 each Eaton KD3400 Circuit Breakers wired to outgoing Camlock Cable Connectors

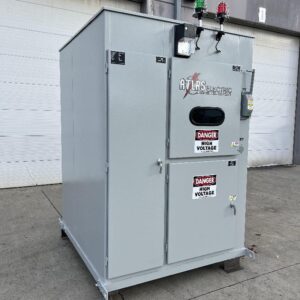

Atlas Electric Outdoor Load Break Switch Lineup, 600 amp, 5 KV

Atlas Electric Custom Manufactured Outdoor Load Break Switch Lineup, 600 amp, 5 KV with a main fused load break switch and three feeder fused switches. The feeder switches come with stored energy mechanisms for opening switches in the event of a blown fuse.


Atlas Electric Custom Manufactured Medium Voltage Switchgear

Atlas Electric Custom Manufactured Medium Voltage Switchgear with the following major components:

  • ABB 15 KV, 1200 amp, Versarupter Non-Fusible Main Load Break Switch
  • 2 each Eaton 17.5 KV, 1250 amp, Type 175-VACiMB Mining Circuit Breakers
  • 2 each Schweitzer SEL-751 Feeder Protection Relays
  • 2 each Startco SE-135 Ground Check Monitor
  • 5 KVA Control Power Transformer

Skid mounted low voltage outdoor walk-in switch-house

Custom fabricated skid mounted low voltage outdoor walk-in switch-house with reconditioned Westinghouse DS-II switchgear. The switchgear included 3200 amp main-tie-main electrically operated draw-out circuit breakers and 4 each 1600 amp electrically operated draw-out feeder circuit breakers. Additionally, the main and feeder breakers came with cam-lock cable connectors wired to exterior of the enclosure to facilitate the quick moving and re-connection of the switchgear.


GE PowerVac 5KV 1200 Amp Outdoor Metalclad Switchgear

Reconditioned General Electric PowerVac 5KV 1200 Amp  Outdoor Metalclad Switchgear with the following major components:

  • Main circuit breaker 1200 amp VB 4.76-31.5-4
  • Two each feeder circuit breakers 1200 amp VB 4.76-31.5-4
  • Three each GE Multilin 750-P5-G5-S5-HI-A20-R-T-H feeder protection relays
  • Line side PT drawer with 2ea 35:1 PTs
  • Bus side PT drawer with 2ea 35:1 PTs
  • Line Side 15kVA 4160-240/120 CPT drawer with primary fusing

15 KV Skid Mounted Portable Switchgear

15 KV Skid Mounted Portable Switchgear with the following major components: 15 KV 600 Amp Non-Fusible Load Break Switch, 2 each Line Power 15 KV 600 Amp Vacuum Circuit Breaker with Multilin 350 Feeder Protection Relays, 5 KVA Control Power Transformer 13800-120/240 Volt with Secondary Distribution Panel, 2 each Pemco 579A Ground Check Monitors, PQMII Power Quality Meter. (16650)


SHIPYARD PORTABLE POWER DISTRIBUTION SYSTEM

Quantity of 12 Portable Power Distribution Skids with the following major components:

  • Heavy Duty Skid with forklift pockets designed for lifting and towing in either direction
  • Incoming Camlock Cable Connectors
  • Siemens TYZ Main Breaker NEMA 3R Panelboard, 400 Amp, 480Y/277 volt with 4 each 100 amp, and 1 each 70 amp branch breakers
  • Federal Pacific 45KVA Dry Transformer 480-208Y120 Volt three phase
  • Siemens 200 Amp Main Breaker Panelboard 208Y/120 Volt three phase with assorted branch breakers
  • All branch breakers wired to outgoing receptacles

2000 amp 480 Volt Power Distribution Center

2000 amp 480 Volt Power Distribution Center with the following major components:

  • Heavy Duty Portable Skid with Fork Lift Pockets, Towing Eyes, and Door Behind Door Enclosure Construction
  • 2000 Amp 480 Volt Main Lug Bus
  • 5 each GE SKLA8 Circuit Breakers with 800 amp Rating Plugs
  • 2 each GE SELA 100 amp Circuit Breakers wired to Appleton ADR1034 Receptacles
  • 75 KVA Dry Transformer 480-240/120 volt connected by a SELA 150 amp Circuit Breaker and feeding a GE 300 Amp Low Voltage Distribution Panel
  • 4 each 15 amp 120 volt GFI Receptacles
  • 2 each 60 amp Welding Receptacles

Portable Skid Mounted 15 KV 600 Amp Vacuum Circuit Breaker

Portable Skid Mounted 15 KV 600 Amp Vacuum Circuit Breaker with the following major components:

  • Line Power Electrically Operated Vacuum Circuit Breaker with Visible Non-Load Disconnect and Visible Vewing Window
  •  5 KVA 13200-120/240 volt Control Power Transformer and Distribution Panel
  •  Schweitzer SEL-751A Feeder Protection Relay
  •  Pemco 579A Ground Check Relay
  •  15 KV Distribution Class Surge Arrestors


PCI 5 KV 600 amp Outdoor Switchgear Lineup

PCI 5 KV 600 amp Outdoor Switchgear Lineup with the following custom features and modifications:

  • 2 each 600 amp Incoming Main Fusible Load Interrupter Switches with Kirk Key Interlocking, Surge Arrestors and Strip Heaters
  • Utility Metering Section with test switch, 5 KVA CPT, 120/240 volt Distribution Panel, Strip Heaters
  • 600 amp Non-Fusible Load Interrupter Switch with Toshiba HV6AS-L 630 amp Electrically Operated Vacuum Circuit Breaker, GE MIFII Feeder Protection Relay, CPT, DC Power Supply, Capacitor Trip Device, and Strip Heaters

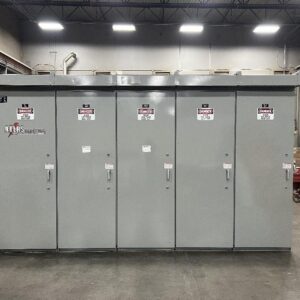

Atlas Electric 5 KV 600 Amp Mine Duty Switchgear

Atlas Electric 5 KV 600 Amp Mine Duty  Switchgear with the following major components: ABB 5 KV 600 Amp  Non Fused Load Break Switch, Toshiba HV6CS-L-AV 600 Amp Vacuum Circuit Breaker, Schweitzer 751 Feeder Protection Relay, GE PQMII Power Quality Meter,  Startco  Ground Fault Ground Check Monitor.


Atlas Electric/ABB 5 KV, 600 amp, Non-Fused Manual Transfer Switch

Atlas Electric/ABB 5 KV, 600 amp, Non-Fused Manual Transfer Switch with Kirk-Key Interlocking and Heavy Duty N-3R Gasketed Enclosure.




Unit Substation Switchgear Lineup

Unit Substation Switchgear Lineup with 2 each ABB 15 KV 600 amp Main Load Break Switches, 1 each ABB 15 KV 600 amp Tie Non-Fused Load Break Switch, 2 each Becker SMC 15 KV 600 amp Feeder Vacuum Circuit Breakers with Visible Disconnect. Breakers come with GE Multilin MIFII Overcurrent Relays, Pemco High Voltage Ground Fault Ground Check Monitor and Capacitor Trip Device. The Switchgear also includes Startco SE 325 Neutral Grounding Resistor Monitor and 15 KVA Control Power Transformer 12,470-120/240 volt with Distribution Panel.



PowerVac – 5kv Medium Voltage Outdoor Switchgear

GE/Powell PowerVac 5kv Medium Voltage Outdoor Switchgear, Non-Walk-in, Double Ended Main-Tie-Main Configuration, 50KA,  6-sections, 2 each 1200 amp Main Breakers, 1 each 1200 amp Tie Breaker, 6 each 1200A Feeder Breakers, 4 each PT drawers, all breakers are type VB 4.76-50-4 equipped with Schweitzer SEL-751A Feeder Protection Relays. Manufactured new in 2017 and used for less than 1 year on a temporary project.




Square D MasterClad 15KV Switchgear

NEW SURPLUS Square D MasterClad 15KV Switchgear originally manufactured in 2008. The switchgear consists of six sections with six 1200 amp Vacuum Circuit Breakers Catalog Number V5D6133Y000 and associated relays, PT’s, and CT’s. The switchgear has spare cells for additional breakers that Atlas Electric can provide and make any modifications required to suit your application.

Click on the link below to view addtional pictures and information:

https://www.dropbox.com/sh/e1fpc6iuu844zmw/AABOqoHj_ybPd5XuIchuWQXpa?dl=0


Cutler Hammer 5 KV Metal Clad Switchgear

Cutler Hammer 5 KV Metal Clad Switchgear includes three two high sections with three type VCP-250 1200 amp Vacuum Circuit Breakers, Digitrip 3000 Protection Relays and prepared cells for additional breakers that Atlas Electric can provide along with any other modifications required to suit your application.






NEW SURPLUS Siemens GM-SG Metal Clad Switchgear 5 KV 1200 amp

NEW SURPLUS Seven Section lineup of Siemens GM-SG Metal Clad Switchgear 5 KV 1200 amp with the following major components:

  • Five each 5-GMSG-50 1200 amp Vacuum Circuit Breakers
  • Two each PT Drawers 35:1
  • Five each Schweitzer SEL-351 Feeder Protection Systems
  • Five each Electro Industries/Gauge Tech Multifunction Switchboard Power Meters Model Shark 200 Data Logging Power Meter/Transducer

Atlas Electric can offer this lineup as currently configured or modify to suit your application.
