Atlas Electric stocks the Northwest’s largest inventory of New, Surplus, and Used/Reconditioned Electrical Equipment. Below is a description and pictures of some of most recent additions to our inventory. If you are interested in saving valuable TIME and MONEY on your next project please contact a member of our sales team.
Square D 15 KV 1200 Amp Outdoor Switchgear Lineup with the following:
• Type VR 1200 Amp Main Circuit Breaker Cat. No. V5D7153Y000
• Voltage Transformer Grounding Switch and Utility Voltage Transformer Compartment
• Four each 600 Amp Fusible Load Interrupter Switches
Atlas Electric can recondition and modify this lineup to suit your application.
Square D QED Power Style Switchboards 3000 amp, 480 volt, 3 phase, 3 wire, 65KAIC, each containing the following circuit breakers:
• Masterpact NW30H, 3000 amp, Cat. WL3HHR33A9SXXXXXCA, Micrologic 5.0 with LSI Functions
• Masterpact NW30H, 3000 amp, Cat. WL3HHR43A9SFFFXXCX, Micrologic 5.0 A with LSI Functions
• Masterpact NW30H, 3000 amp, Cat. WL3HHR44A9SFFFXXCX, Micrologic 6.0 A with LSIG Functions
• Masterpact NW20H, 2000 amp, Cat. WL1FFR33A9SXXXXXCK, Micrologic 5.0 with LSI Functions (2 each)
• Masterpact NT12L1, 1200 amp, Cat.TL8CCR33A9SXXXXXCX, Micrologic 5.0 with LSI Functions (2 each)
• Masterpact NT08L1, 800 amp, Cat.TL8AAR33A9SXXXXXCX, Micrologic 5.0 with LSI Functions
• PowerPact 400 amp, Cat. DJD36400E53HJ00 (2 each)
Atlas Electric can recondition and modify these switchboards to suit your application.

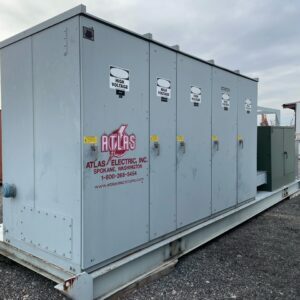

1500 KVA Skid Mounted Portable Substation with the following major components:
• Square D 15KV Switchgear with a Main 600 amp Fused Load Interrupter Switch, three each 600 Amp Feeder Load Interrupter Switches and one New General Electric PowerVac 1200 amp Fixed Vacuum Circuit Breaker
• Cooper 1500 KVA Pad Mount Transformer 13800Delta-13800Y/7967 volt, three phase
• Neutral Grounding Resistor
• Control components included a 5 KVA CPT, Schweitzer SEL-751 Feeder Protection Relay, and Startco SE-325 NGR Monitor
Atlas Electric can sell complete as currently configured or the individual components separately.
- PCI 15 KV, 600 Amp, 40 KA rated Fusible Load Break Switch
- MGM 2000kVA Dry Type Transformer 13800-480Y/277 volt, three phase
- 2500 Amp GE Spectra Series Main Breaker Switchboard
- Neutral Grounding Resistor
- Startco SE 325 NGR Monitor
Available for immediate delivery in cleaned, tested, electrically OK condition, or 6-8 week delivery if fully reconditioned and guaranteed for 1 year.
Siemens 5 KV Metal Enclosed Switchgear includes four lineups with a 1200 Amp Main Fused Load Interrupter Switch and six each 400 Amp Latching Contactors Catalog Number 3TL8107-1BAOO with Feeder Protection Relays. Atlas Electric can modify and customize these lineups to suit your application. NEW SURPLUS
6 each, IEM 3000 Amp Main Breaker Switchboards, 480Y/277 Volt, 3 Phase 4 Wire, 60 Hz, 65 KA. All Circuit Breakers are Square D Masterpact M/O D/O Insulated Case. The Main is Type NW 30 N with LSIG Functions Feeder Breakers include an assortment of Type NW 16 N with LSI functions, Type NW 16 N with LSIG functions, and NW 08 N with LSI functions. The Switchboards also includes an overhead circuit breaker hoist assembly. Atlas Electric can customize these Switchboards to suit your application.
Siemens Series 81000 5KV 1000 Amp Motor Control Center with a main fusible load interrupter switch and 3 each Type SVC-93H3 400 Amp vacuum contactors. Starters are equipped with Multilin 269 Motor Management Relays and SMC ground check monitors. Atlas Electric can recondition and modify this MCC to suit your application.
Siemens Model 95 Motor Control Center Buckets large assortment including the following:
• 67 each Size 1 FVNR Starters
• 29 each Size 2 FVNR Starters
• 12 each Size 3 FVNR Starters
• Larger assortment of 15-400 Amp Circuit Breaker Feeders
All Starter Buckets come equipped with Motor Circuit Interrupters and SAMMS-LVX SAM 5 Communications Modules
Square D MasterClad 1200 Amp 5 KV Metal Clad Switchgear with 6 each 1200 Amp Type VR Vacuum Circuit Breakers Catalog No. V5D4133Y000, and ABB Circuit Shield Overcurrent and Undervoltage Relays. NEW SURPLUS! Atlas Electric can modify or reconfigure this lineup to suit your application.
Siemens Medium Voltage Motor Control Center, 1200 Amp, 5 KV with a 1200 Amp Main Fused Load Interrupter Switch and 6 each 400 Amp FVNR Starters Catalog Number 3TL8107-1BA00. NEW SURPLUS. Three complete lineups totaling 18 starters. Atlas Electric can modify or reconfigure to suit your application.
NEW SURPLUS Siemens Medium Voltage Motor Control Center 5KV 1200 amp with the following major components:
- Eight each SIMOVAC AC Controllers Type FVLMNR-F, 400 amp, Cat. No. 12SVC400-05
- Eight each Schweitzer SEL-749M Motor Relay
- Eight each Electro Industries/Gauge Tech Multifunction Switchboard Power Meters Model Shark 200 Data Logging Power Meter/Transducer
Atlas Electric can offer this Motor Control Center as currently configured, modify to suit your application, or sell as individual stand-alone starters.
Equipped with 15KV 1200 amp ABB SafeGear Metal Clad Arc Resistant Switchgear.
The switchgear includes AMVAC 1200 amp circuit breakers with a Main-Tie-Main configuration, 13ea. feeder circuit breakers and prepared cells for the future addition of 2 more feeder breakers. The E-house also has space and provisions to add up to two more sections of switchgear with 4 more feeder breakers. Additional features include complete insulation package with R-11 thermal resistance rating, wall mount HVAC system, and a fully equipped control battery room. Atlas Electric can reconfigure and customize this E-House and/or Switchgear to suit your application.
NEW SURPLUS Seven Section lineup of Siemens GM-SG Metal Clad Switchgear 5 KV 1200 amp with the following major components:
- Five each 5-GMSG-50 1200 amp Vacuum Circuit Breakers
- Two each PT Drawers 35:1
- Five each Schweitzer SEL-351 Feeder Protection Systems
- Five each Electro Industries/Gauge Tech Multifunction Switchboard Power Meters Model Shark 200 Data Logging Power Meter/Transducer
Atlas Electric can offer this lineup as currently configured or modify to suit your application.
Eaton Freedom Series 2100 Motor Control Center with the following major components:
- 7 each Vertical Sections with 800 amp Main Bus
- HMDL Main Circuit Breaker (800A trip)
- 22 each Size 1 FVNR Starter Buckets
- 1 each Size 1 2-Speed Starter Buckets
- 2 each Size 2 FVNR Starter Buckets
- HKD Circuit Breaker Feeder Bucket (400A trip)
- HFD Circuit Breaker Feeder Bucket (225A trip)
- HFD Circuit Breaker Feeder Bucket (150A trip)
- HFD Circuit Breaker Feeder Bucket (100A trip)
- HFD Twin Circuit Breaker Feeder Bucket (70A/60A trip)
- HFD Twin Circuit Breaker Feeder Bucket (60A/60A trip)
- HFD Twin Circuit Breaker Feeder Bucket (30A/30A trip)
- HFD Circuit Breaker Feeder Bucket (15A trip)
This MCC can be reconditioned, modified, and reconfigured to suit your application or we can provide individual buckets to add to your existing MCC.
Allen Bradley IntelliCENTER Motor Control Center, 110 vertical Sections with a large assortment of starter buckets size 0 thru size 5, 200-300 HP SMC Dialog Plus Solid State Starters, and circuit breaker feeder buckets. Atlas Electric can reconfigure complete lineups to suit your application or sell individual buckets.
NEW SURPLUS Allen Bradley ARCSHIELD 5 KV Motor Control Center includes 22 each 2-High vertical sections with 44 each 400 amp starters and 7 each sections with 800 amp starters. The starters have Vacuum Contactors Catalog Number 1502-VC4DBDA-0 (400 amp), 1502VC8DXDA-1 (800 amp), and General Electric Multilin 469 Motor Protection Relays. Atlas Electric can reconfigure and modify into lineups that suit your application.
Click on the following link to view additional pictures and infomation:
AB MCC w/2000 A Main – Allen Bradley Centerline 2100 Motor Control Center with Eaton 2000 Amp Main Circuit Breaker Cat. No. RD320T33W, 7 each Vertical Sections, 6 each Size 5 FVNR Starters, 1 each Size 3 FVNR Starter, 4 each Size 2 FVNR Starters, 1 each 15 amp Feeder Breaker. Atlas Electric has hundreds of sections of MCC and buckets in stock that can be used to modify this MCC to suit your application.
Cutler Hammer 5 KV Metal Clad Switchgear includes three two high sections with three type VCP-250 1200 amp Vacuum Circuit Breakers, Digitrip 3000 Protection Relays and prepared cells for additional breakers that Atlas Electric can provide along with any other modifications required to suit your application.
Over 300 sections with size 0 thru size 6 reversing, non-reversing and reduced voltage starters, variable frequency drives, circuit breaker and fusible feeder buckets. Many sections include main circuit breakers or main lugs and 600-1200 amp buss. We can reconfigure and customize the lineups to suit your application or sell individual buckets to add to your existing MCC.
